Carter Trigger Release Too Simple 2024 - 4 Finger
Carter Trigger Release Too Simple 2024 - 4 Finger
About the product
Introducing the Too Simple 24 4fg, the latest evolution of our esteemed archery release designed for the demands of 2024. Building upon the success of its predecessor, the new Too Simple 24 incorporates a robust trigger mechanism for enhanced durability, ensuring it stands up to the rigors of intense shooting sessions. With the addition of an extension bar, shooters now have even greater flexibility to fine-tune their setup, allowing for precise customization of trigger position to achieve the perfect fit and feel.
Featuring the same comfortable and universally fitting handle as the First Choice 24, the Too Simple 24 sets itself apart with its ultra-short head design, engineered to maximize speed without compromising on comfort or control. The inclusion of the auto-locking jaw mechanism, also found in the First Choice 24, guarantees a smooth and trouble-free loading process onto a D-loop with just a simple push of a button.
At the core of the Too Simple 24 lies Carter Enterprises' unique "double sear" trigger system, renowned for its unparalleled precision in trigger travel adjustment. The addition of a screw tension adjustment further refines the shooting experience, allowing for micro-adjustments to trigger tension with ease.
Designed with the needs of both target shooters and hunters in mind, the Too Simple 24 offers the simplicity of a thumb-trigger release coupled with the performance expected from a premium Carter Enterprises product. Whether you're fine-tuning your aim on the range or preparing for that crucial shot in the field, the Too Simple 24 4fg delivers the reliability and accuracy you need to excel. Available now in both 3 and 4 finger configurations.
Archery Tech Team
- Productnumber: 121070
- Packaging quantity: 1
- Stock Status: On stock
- Brand: Carter
Carter Trigger Release Too Simple 2024 - 4 Finger
The Too Simple 24 by Carter Enterprises sets a new standard in archery precision and ease of use. Here's a comprehensive breakdown of its features and usage guidelines:

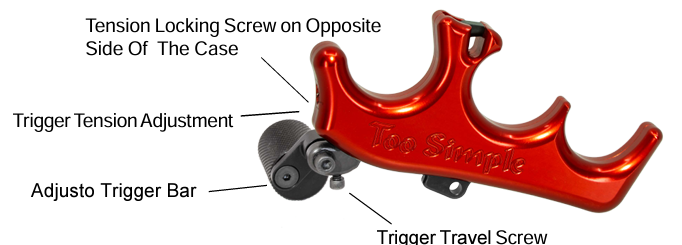

Trigger Tension Adjustment:
Trigger tension is easily customizable using a .050 hex key.
Loosen the locking screw on the side of the case to access the tension adjustment screw with a 3/32 hex key.
Turning the screw clockwise increases tension, while counterclockwise decreases tension, offering micro-adjustments for optimal performance.
After achieving your desired tension, snugly tighten the locking screw to secure the adjustment in place, being cautious not to over-tighten and damage the threads.
Trigger Travel Adjustment:
Trigger travel, the degree to which the trigger moves before firing, is adjustable for personalized comfort and performance.
Utilize the travel screw: turn counterclockwise for increased travel and clockwise for reduced travel.
Ensure safety by testing the release after adjustment, hooking it to a stationary object and performing a pull-test and fire sequence.
Adjusto Trigger and Bar:
The Too Simple 24 features an adjustable knurled knob and bar for enhanced comfort and fit.
Loosen either bolt to adjust the knob or bar to your desired position, then re-tighten to secure in place.
General Directions for Use:
Insert your d-loop into the jaw slot and push in on the cocking lever to close and lock the jaw onto the loop.
Draw and anchor, ensuring your thumb remains away from the trigger until ready to fire.
Once anchored and aimed, gently rest your thumb on the trigger. Applying thumb pressure will initiate the release.
By combining precision engineering with user-friendly features, the Too Simple 24 ensures consistent performance and safety, empowering archers of all levels to achieve their best shots.
Archery Tech Team
- Height: 6.00 cm
- Width: 18.00 cm
- Length: 12.00 cm
